Model P1282B

• Dual channel 1.25GS/s 16 bit AWG & AWT configurations
• 8GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
• Excellent phase noise and spurious performance
• Integrated NCO for digital up-converting to microwave frequencies
• Standalone 4U, 19” wide benchtop platform, with 9” touch display, USB 3.0, 10G Ethernet and thunderbolt high speed interfaces.
• Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
• Real time data streaming directly to the FPGA for continuous and infinite waveform generation
• User customizable FPGA for application specific solutions
• Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario

Standalone and easy to use

The benchtop version of the Proteus series offers up to 12 channels in a 4U, 19” benchtop box. With a 9” touch display and on-board PC the benchtop platform enables users to program the instrument without the need of an external PC. Users can program the instrument from the on-board PC using various programming environments such as Matlab, LabView, Python,and more. So for synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver is an ideal, high performance and cost effective solution.

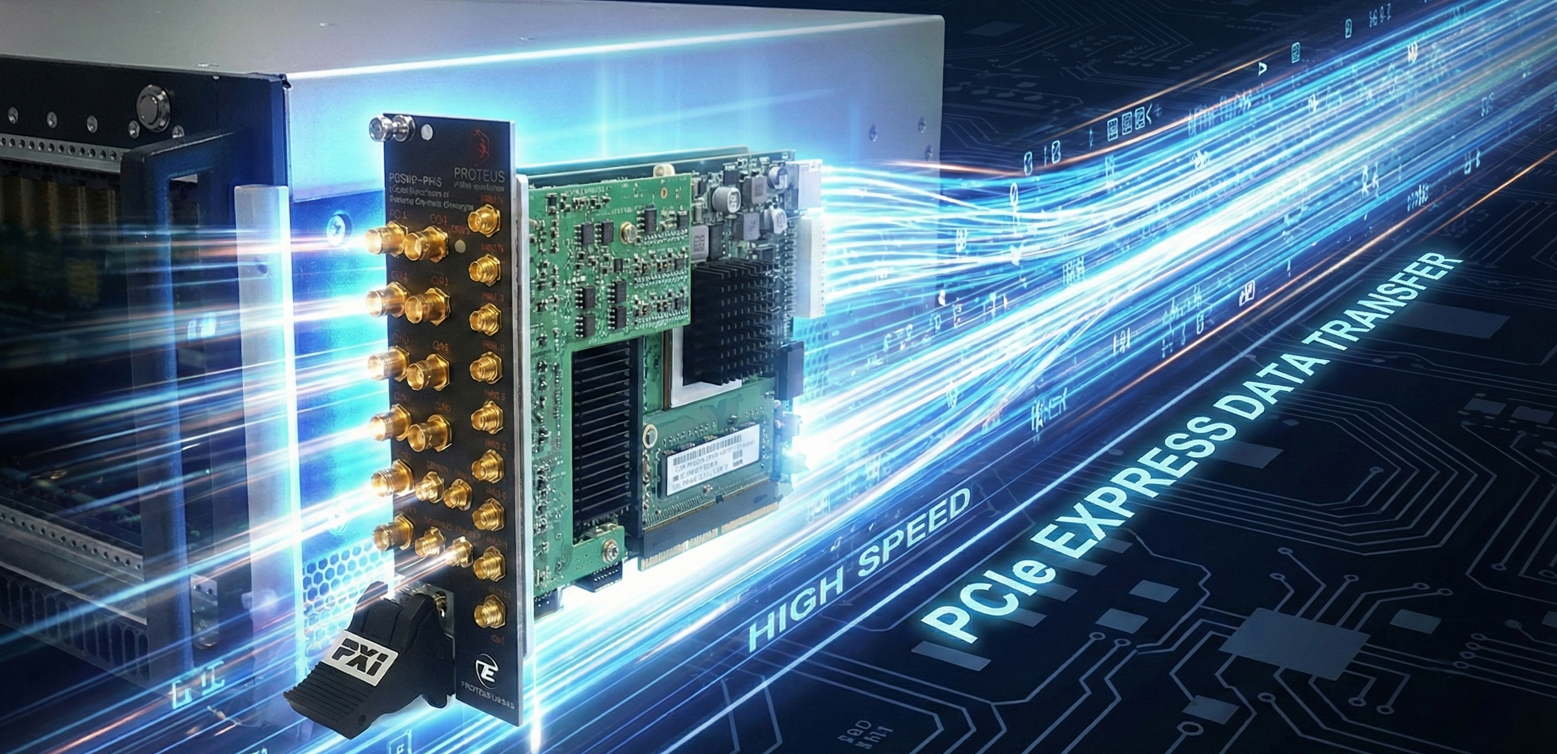

Ultra-fast data transfer rates

Spending more time setting up your generated scenario than actually running it? The Proteus Benchtop platform utilizes PCI express Gen 3x8 lanes connection that enables up to 64Gb/s of data transfer speed. This enable the Proteus arbitrary waveform transceiver to offer the fastest waveform download available on the market today, saving you one of your most valuable resources, time.

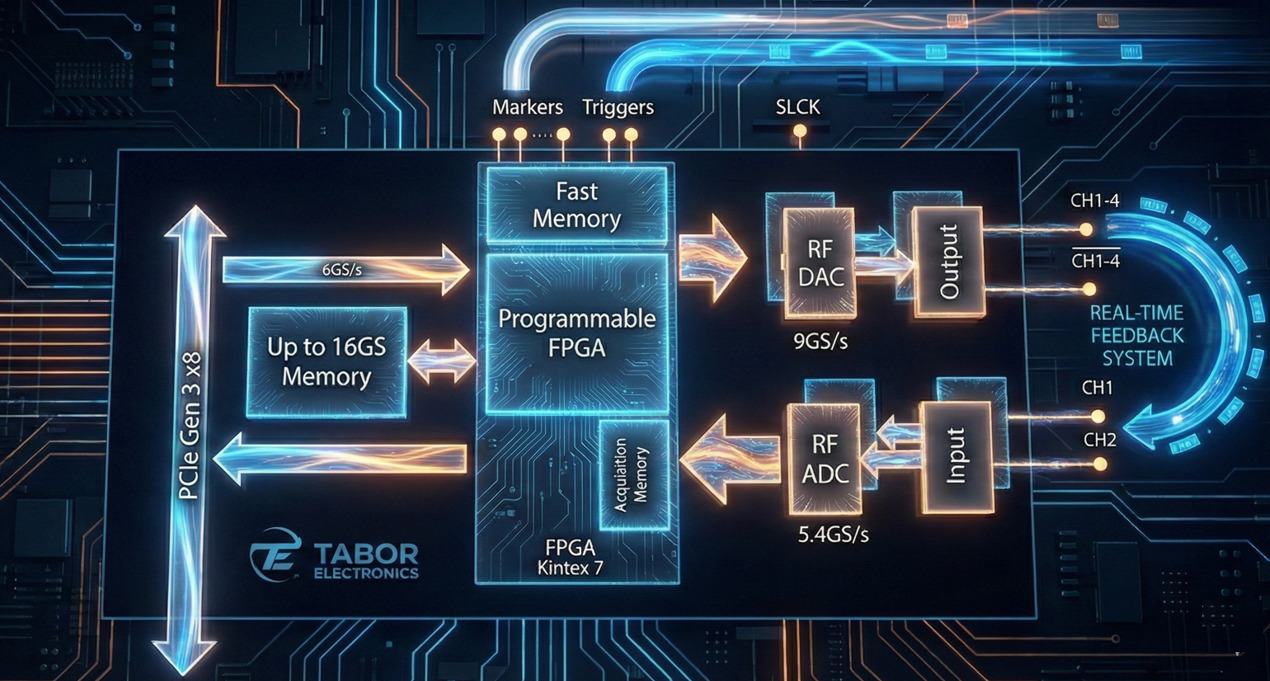

Feedback control system

Many of today’s applications, require conditional waveform generation depending on input signals from the environment. The Proteus arbitrary waveform transceiver flawlessly integrates both DAC and ADC in one system, controlled by a single FPGA for optimal synchronization and minimum latency. This high speed control system provides a feedback loop for fast decision making on the fly with minimum latency.

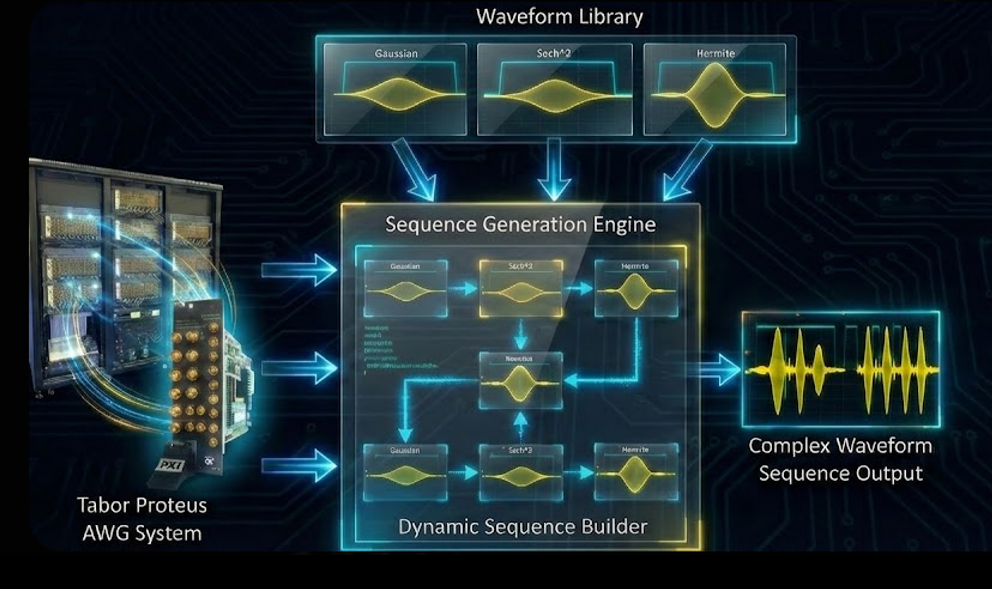

Generate any imaginable scenario

The new series offers an innovative task oriented sequence programming where user can change the full instrument set up at every line of the task table. In addition, not only can users of the Proteus series instruments generate and download waveforms simultaneously, they can stream data directly to the FPGA without the need to use the built in memory. This enables generating random, unique and infinitely long scenarios directly from the controlling PC at DAC speeds of up to 6GS/s. So no matter whether your scenario is extremely complex, infinite or even dynamic you can generate it with the Proteus series model.

 Options

Note: Options and Accessories must be specified at the time of your purchase.
