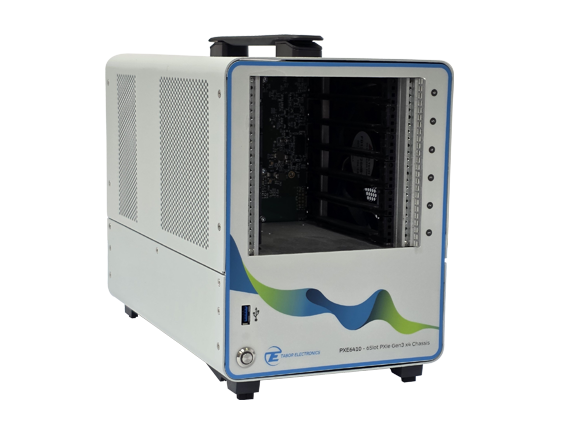

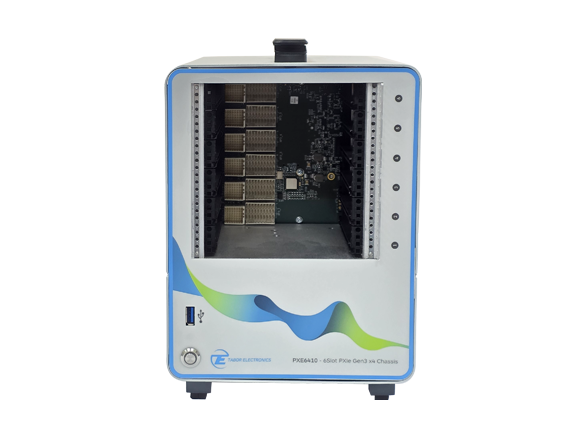

6 Slot PXIe Based Chassis with Embedded Controller

The PXE6410 is a PXIe based 6 based slot Gen 3 x4 chassis, that supports the Tabor Proteus Family of AWG’s and the TE330x family of PXIe RF amplifiers. The Chassis allows you to purchase any Proteus PXIe module and later add or up-grade to more channels, higher sample rates or higher output power. The system includes an embedded PC with an internal SSD drive, HDMI connection, USB interfaces for a mouse and keyboard, as well as control using USB-C and 1000BASE-T LAN.



Relevant Documents
Data Sheet(857 KB)
  • PXIe based 6 slot Gen 3 x4 chassis
  • Intel Pentium 3MB Cache, 2.20GHz embedded controller
  • 120GB SSD
  • Windows 10 IOT OS
  • 3 USB ports
  • HDMI
  • LAN or USB-C remote control

Characteristics

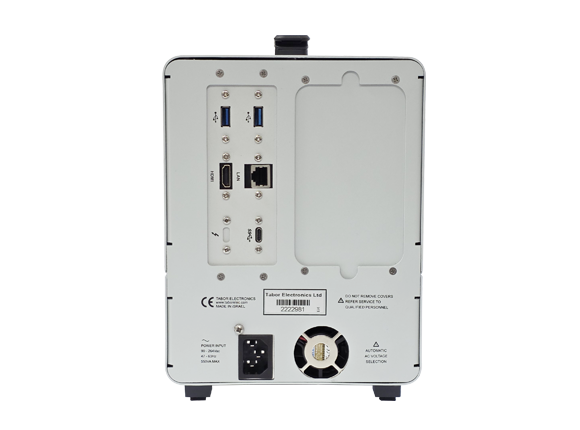

The PXE6410 is a PXIe based 6 slot Gen 3 x4 chassis. It has a Intel Pentium 3MB Cache, 2.20GHz embedded controller with a 120GB SSD. The operating system is Windows 10 IOT. Keyboard and mouse and memory stick connectivity is enabled with it's 3 USB ports. A monitor may be connected through HDMI and the unit is remotely controlled by LAN or USB-C.

Model Description
PXE6410 6 Slots Chassis.

Options

Name Description
COMP Contact us for more information
PD-Rack Mount Rack mount kit

Accessories

Name Description
SLOT1 Single Slot Width Blank Covers (Required for cooling)

Note: Options and Accessories must be specified at the time of your purchase.
