Model LS1294R

• 12GHz multi-channel RF analog signal generator
• Four phase coherent channels in a single 1U box
• Extremely Fast Switching speed of <100us
• AM, FM, PM, Sweep & Pulse Modulation
• Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
• USB and LAN interfaces
• Highest density and space efficient rack-mountable platform
• Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.

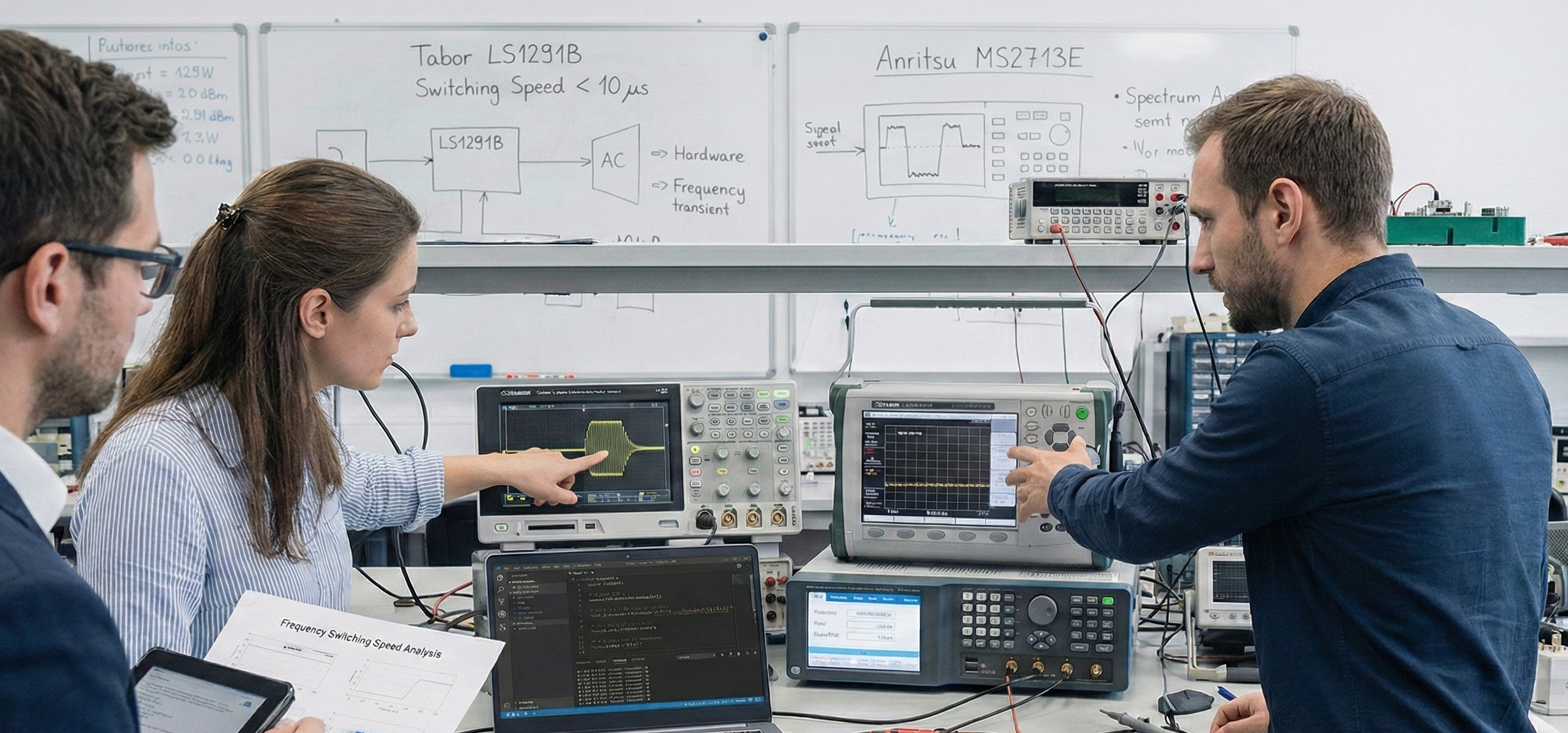

Extremely Fast Switching

In today’s world, time is a crucial factor, whether in design, on the production floor or inside ATE systems. With a switching speed of less than 100•µs, Tabor’s All-New Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.

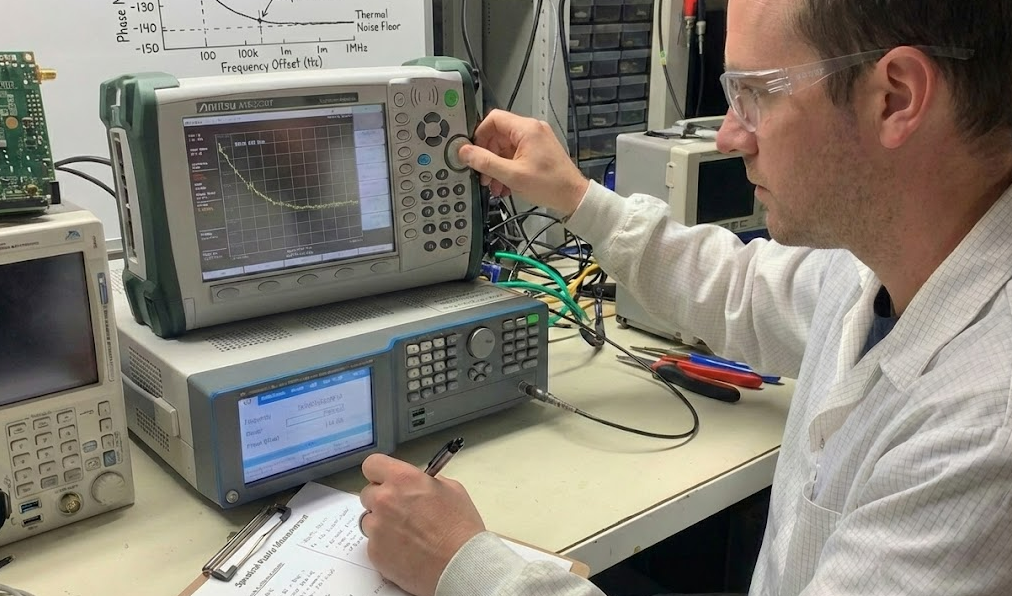

Signal Integrity and Purity

One of the most important requirement in today’s testing and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc at 100MHz, and -132dBc at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

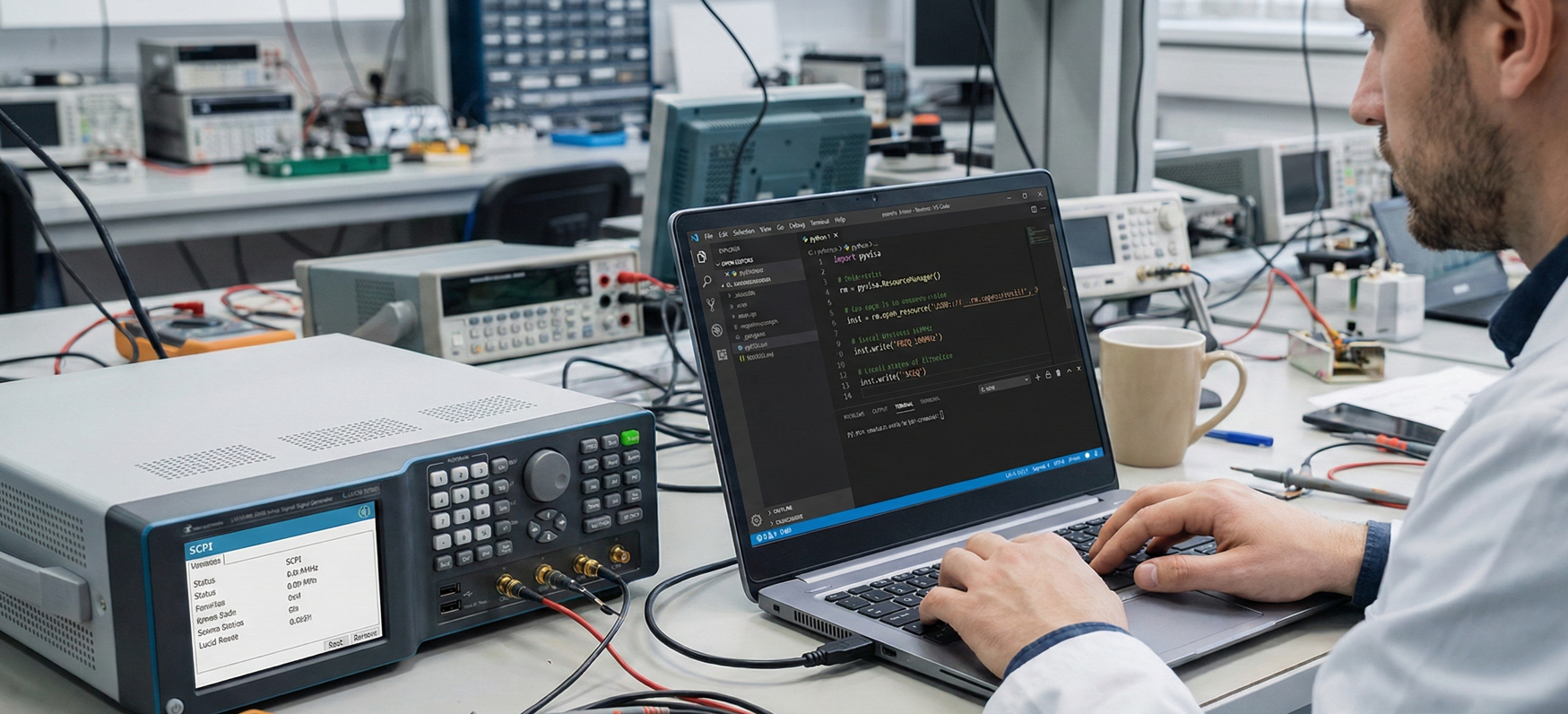

Multiple Ways to Control the Unit and Write Your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including Labview, Python, CVI, C++, VB and MATLab. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

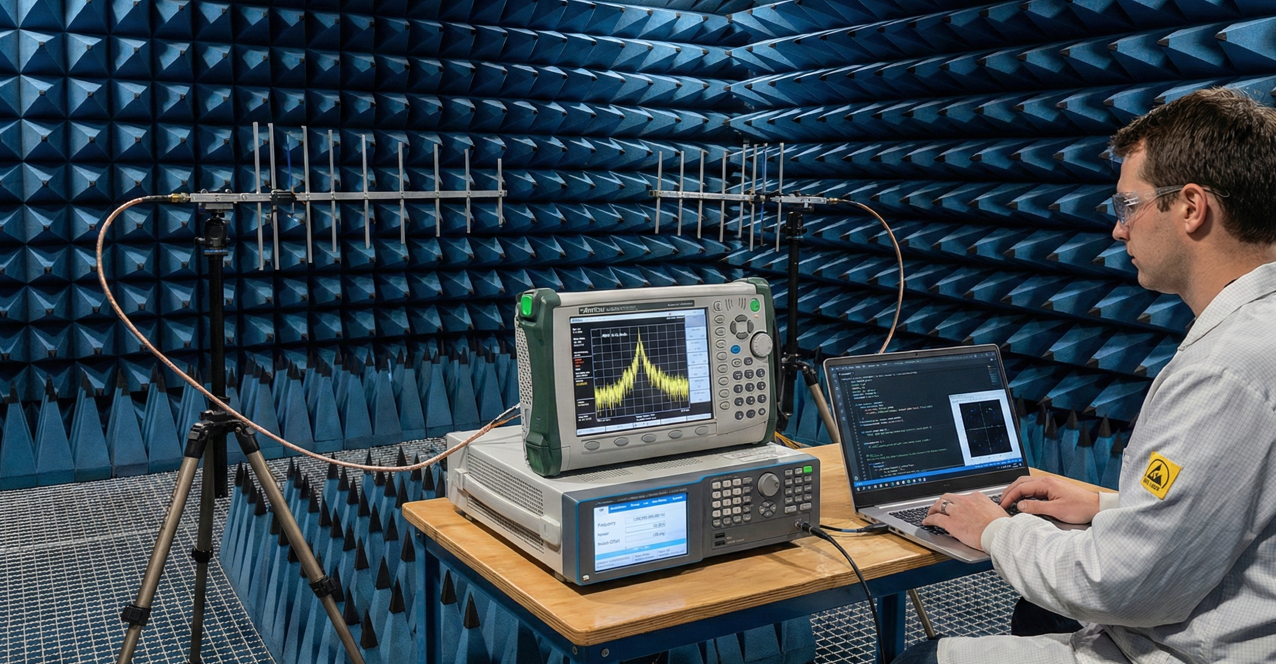

Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.

Multi-channel, phase coherent, benchtop generator

Many test systems and experimental setups require multiple RF channels, either separate or synchronized. The new Lucid series benchtop platform offers up to 4, separate or phase coherent, RF outputs in a single, 1U, 19” box, or up to 16 RF outputs in a single, 3U, 19” box, saving up extremely valuable space compared to available solutions on the market. Tabor’s all-new Lucid series rack-mounted version saves both valuable rack space and investment capital without compromising performance.

Options

Note: Options and Accessories must be specified at the time of your purchase.
